前馈网络层

1. 前馈网络层

llama3模型的前馈网络层代码如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
class FeedForward(nn.Module):
def __init__(
self,
dim: int,
hidden_dim: int,
multiple_of: int,
ffn_dim_multiplier: Optional[float],
):
"""
Initialize the FeedForward module.

Args:
dim (int): Input dimension.
hidden_dim (int): Hidden dimension of the feedforward layer.
multiple_of (int): Value to ensure hidden dimension is a multiple of this value.
ffn_dim_multiplier (float, optional): Custom multiplier for hidden dimension. Defaults to None.

Attributes:
w1 (ColumnParallelLinear): Linear transformation for the first layer.
w2 (RowParallelLinear): Linear transformation for the second layer.
w3 (ColumnParallelLinear): Linear transformation for the third layer.

"""
super().__init__()
hidden_dim = int(2 * hidden_dim / 3)
# custom dim factor multiplier
if ffn_dim_multiplier is not None:
hidden_dim = int(ffn_dim_multiplier * hidden_dim)
hidden_dim = multiple_of * ((hidden_dim + multiple_of - 1) // multiple_of)

self.w1 = ColumnParallelLinear(
dim, hidden_dim, bias=False, gather_output=False, init_method=lambda x: x
)
self.w2 = RowParallelLinear(
hidden_dim, dim, bias=False, input_is_parallel=True, init_method=lambda x: x
)
self.w3 = ColumnParallelLinear(
dim, hidden_dim, bias=False, gather_output=False, init_method=lambda x: x
)

def forward(self, x):
return self.w2(F.silu(self.w1(x)) * self.w3(x))

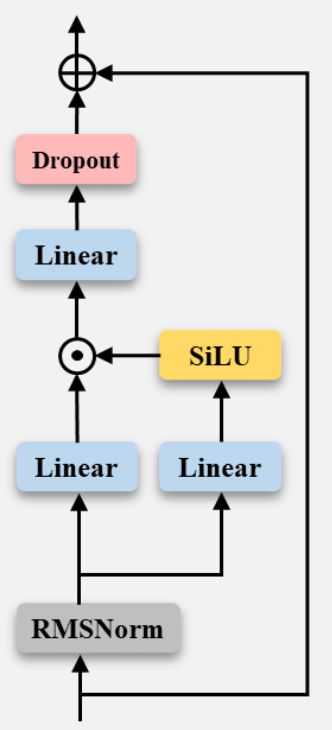

llama3 feedforward

GELU 激活函数

深度学习网络中常用的激活函数

Sigmoid

tanh

ReLU

Leaky ReLU

ELU 指数线形单元

GELU

其中服从标准正态分布

激活函数

门控机制

w1和w3分别生成两个独立的特征表示,通过逐元素相乘(*)实现门控效果,w2将门控后的特征表示映射回原始维度。

GLU,即门控线性单元,在2016年提出, 源自论文《Language Modeling with Gated Convolutional Networks》,随后google在20年提出多种变体,《GLU Variants Improve Transformer

在llama系列模型中,都采用了这种门控机制。

MOE


前馈网络层
